Build an operating-point estimate

Use total reduction and a measured rolling circumference when available. If using a converter, compare multiple documented operating ratios. Record whether engine RPM was measured under load or is merely a no-load setting. Those are different inputs with different practical meaning.

CORE RELATIONSHIPMPH = engine RPM × π × tire diameter(in) / (1,056 × total reduction)

Follow the worked comparison below for the input units and assumptions.

Work through an example

FOLLOW THE NUMBERS

At 3,600 rpm, 6:1 overall reduction and a nominal 19-inch tire, wheel speed is 600 rpm and geometric road speed is about 33.92 MPH. A 7.5:1 reduction reduces that result to about 27.13 MPH.

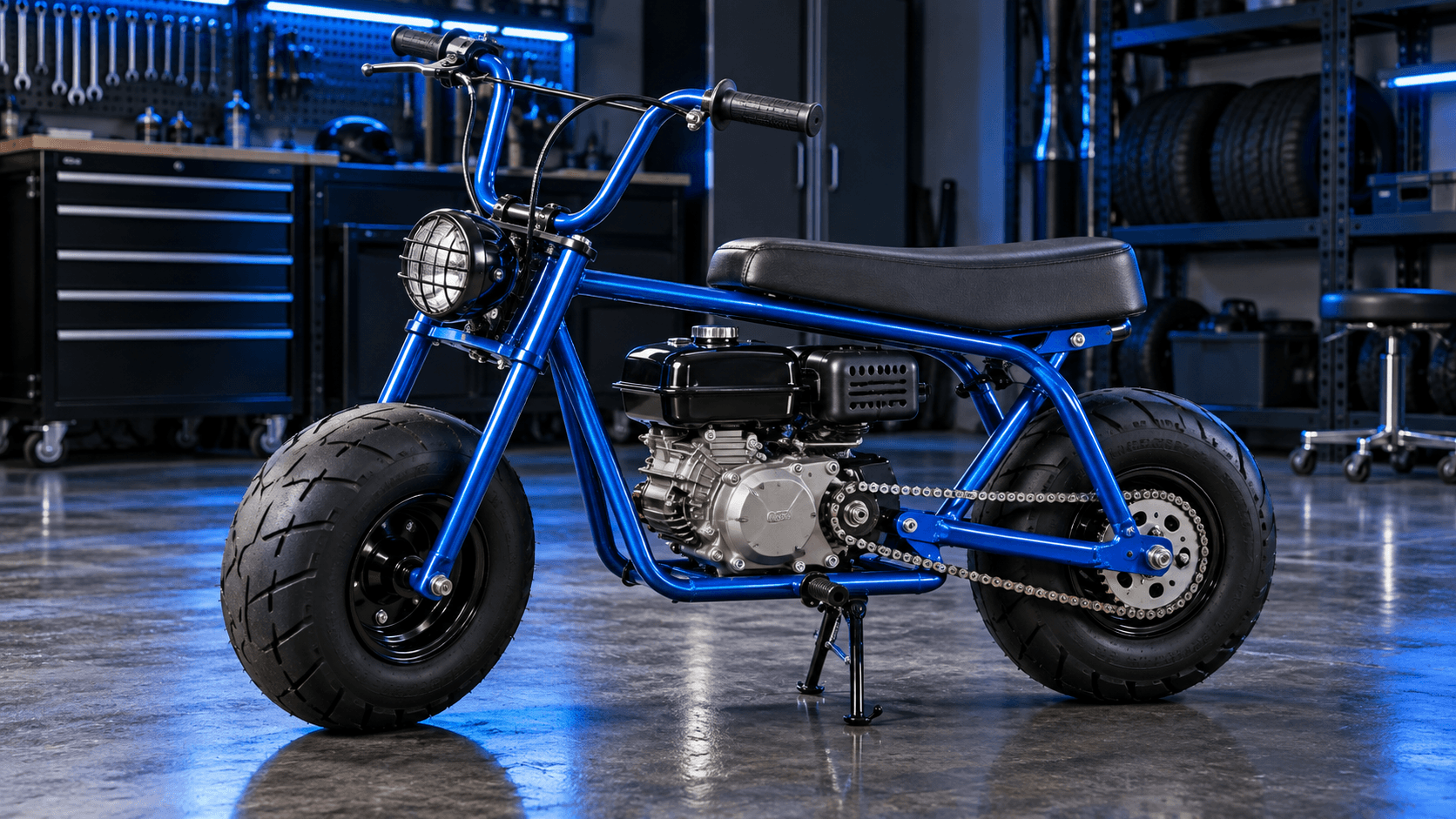

Mini bike illustration accompanying the worked calculation; the numerical assumptions are stated in the text.
Illustration · use the calculated values in the example

Distinguish calculated wheel speed from attainable top speed

An RPM-to-speed result is the travel associated with a chosen operating point. It does not solve the resistance and available-power balance. Treat a mini-bike top-speed calculation as a way to compare gearing, then label whether its RPM was measured or assumed.

Test sensitivity to the uncertain inputs

Try a plausible range of loaded RPM and the documented converter operating ratios. Compare measured rolling circumference with nominal tire diameter. Large differences between scenarios show which measurements matter before you focus on decimal places.

Build a mini-bike speed range from stated assumptions

The table fixes engine RPM at 3,600 and nominal diameter at 19 inches, varying only complete reduction. A range of scenarios makes the gearing effect visible without presenting the largest theoretical number as attainable top speed.

MPH = engine RPM × π × tire diameter(in) / (1,056 × total reduction)
  1. Identify whether engine RPM is measured under load or an assumed scenario input.
  2. Include any primary, jackshaft and selected converter reductions.
  3. Calculate geometric speed for the original ratio and each proposed ratio using the same rolling dimension.
  4. Compare observed RPM and speed together; a different loaded RPM can reverse the expected benefit of taller gearing.
Build a mini-bike speed range from stated assumptions — illustrative comparison, with the assumptions stated above
Overall reduction (:1)Wheel RPMTheoretical MPH
660033.91
7.548027.13
940022.61

At unchanged RPM, 7.5:1 gives 80% of the speed of 6:1. A real mini bike may reach different RPM with those two reductions because resistance and available engine output determine its operating point. The table is a transparent comparison of geometry, not a power or resistance model.

Check the inputs before interpreting a difference

Distinguish measured rolling circumference from nominal tire diameter and record the converter ratio used. Do not use an attainable-speed claim to infer that the frame, brakes or tires are rated for that speed.

Before you apply the result

Air resistance, rolling resistance, grade, rider position and available engine power determine the attainable operating point. Do not use a theoretical speed as evidence that a frame, tire or brake system is rated for it.

Try the calculation

Enter your own values in the related calculators. Compare one input at a time and keep units and operating conditions visible with the result.

Frequently asked questions

Can gearing alone predict maximum speed?

No. It maps RPM to wheel travel. Available power, resistance and the RPM reached under load determine the attainable operating point.

Why does taller gearing sometimes reduce observed speed?

The engine may not reach the previous RPM under the greater load. A higher speed-per-revolution does not guarantee more revolutions per minute.

Should I use no-load RPM?

Use it only as an explicitly assumed scenario. Loaded RPM is the relevant input when comparing with observed road speed.

What should I record when calculated mini-bike speed differs from observed speed?

Record synchronized loaded engine RPM, independent road speed, selected gear or converter operating point, complete reduction and rolling circumference. Those inputs help locate the mismatch.

Reference and method

Angular speed and tangential speed. Gear reductions follow tooth engagement and conservation of rotation count.

OpenStax — University Physics: rotation with constant angular acceleration ↗

These explanations and examples describe the documented model. No manufacturer testing, named expert authorship or independent professional review is claimed. Read the method policy or report a correction.
